#include <stdio.h>
#include <stdint.h>
#include <stdbool.h>
#include "crossplatform.h"

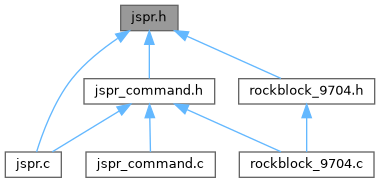

This graph shows which files directly or indirectly include this file:

Classes
struct	jsprResponse_t

struct	jsprDottedVersion_t

struct	jsprVersionInfo_t

struct	jsprBootInfo_t

struct	jsprApiVersion_t

struct	jsprSimInterface_t

struct	jsprFirmwareInfo_t

struct	jsprOperationalState_t

struct	jsprMessageOriginate_t

struct	jsprMessageOriginateSegment_t

struct	jsprMessageTerminate_t

struct	jsprMessageTerminateSegment_t

struct	jsprConstellationState_t

struct	jsprMessageOriginateStatus_t

struct	jsprMessageTerminateStatus_t

struct	jsprProvisioning_t

struct	jsprMessageProvisioning_t

struct	jsprHwInfo_t

struct	jsprSimStatus_t

Macros
#define	RX_BUFFER_SIZE 8192U

#define	TX_BUFFER_SIZE 8192U

#define	JSPR_MAX_TARGET_LENGTH 30U

#define	JSPR_RESULT_CODE_LENGTH 3U

#define	JSPR_MIN_RESPONSE 9U

#define	JSPR_MAX_TARGET_LENGTH 30U

#define	JSPR_MAX_JSON_LENGTH 3500U

#define	JSPR_MAX_SEGMENT_LENGTH 1447U

#define	JSPR_MAX_NUM_API_VERSIONS 2U

#define	JSPR_VERSION_INFO_BUILD_INFO_LEN 50U

#define	JSPR_BOOT_INFO_IMAGE_TYPE_LEN 11U

#define	JSPR_BOOT_INFO_HASH_LEN 65U

#define	JSPR_TOPIC_NAME_MAX_LENGTH 57U

#define	JSPR_MAX_TOPICS 20U

#define	JSPR_HW_VERSION_MAX_LENGTH 7U

#define	JSPR_SERIAL_NUMBER_MAX_LENGTH 7U

#define	JSPR_IMEI_MAX_LENGTH 16U

#define	JSPR_ICCID_MAX_LENGTH 20U

Enumerations
enum	responseCodes { JSPR_RC_NO_ERROR = 200 , JSPR_RC_UNSOLICITED_MESSAGE = 299 , JSPR_RC_API_VERSION_NOT_SELECTED = 400 , JSPR_RC_UNSUPPORTED_REQUEST_TYPE = 401 , JSPR_RC_CONFIGURATION_ALREADY_SET = 402 , JSPR_RC_COMMAND_TOO_LONG = 403 , JSPR_RC_UNKNOWN_TARGET = 404 , JSPR_RC_COMMAND_MALFORMED = 405 , JSPR_RC_OPERATION_NOT_ALLOWED = 406 , JSPR_RC_BAD_JSON = 407 , JSPR_RC_REQUEST_FAILED = 408 , JSPR_RC_UNAUTHORIZED = 409 , JSPR_RC_SIM_NOT_CONFIGURED = 410 , JSPR_RC_WAKE_XCVR_IN_INVALID = 411 , JSPR_RC_INVALID_CHANNEL = 412 , JSPR_RC_INVALID_ACTION = 413 , JSPR_RC_HARDWARE_NOT_CONFIGURED = 414 , JSPR_RC_INVALID_RADIO_PATH = 415 , JSPR_RC_CRASH_DUMP_NOT_AVAILABLE = 416 , JSPR_RC_FEATURE_NOT_SUPPORTED_BY_HARDWARE = 417 , JSPR_RC_NOT_PROVISIONED = 418 , JSPR_RC_INVALID_TRANSMIT_POWER = 419 , JSPR_RC_INVALID_BURST_TYPE = 420 , JSPR_RC_SERIAL_PORT_ERROR = 500 }

enum	jsprBootSource_t { JSPR_BOOT_SOURCE_UNKNOWN , JSPR_BOOT_SOURCE_PRIMARY , JSPR_BOOT_SOURCE_FALLBACK }

enum	availableSimInterfaces_t { SIM_NONE , SIM_LOCAL , SIM_REMOTE , SIM_INTERNAL }

enum	availableOperationalStates_t { INACTIVE , ACTIVE , CAL_TEST , HW_SELF_TEST , RF_SCAN , LOOPBACK , FAULT }

enum	operationalStateReason_t { NORMAL , HARDWARE_SELF_TEST_FAILURE , TEMPERATURE_FAULT , RF_POWER_PROTECTION_FAULT , VAM_APP_FAILED_ACK_INTERFACE_TRANSITION_FLOWING , INVALID_HARDWARE , LOW_SUPPLY_VOLTAGE , MFRTEST_USED_INCORRECTLY }

enum	messageOriginateResponses_t { MESSAGE_ACCEPTED , SUBSCRIPTION_INVALID , MESSAGE_DISCARDED_ON_OVERFLOW }

enum	jsprFinalMoStatus_t { MO_ACK_RECEIVED_MOS , MESSAGE_DISCARDED_ON_OVERFLOW_MOS , MESSAGE_EXPIRED_MOS , MESSAGE_TRANSFER_TIMEOUT_MOS , SEGMENT_NOT_SUPPLIED_MOS , SEGMENT_INCORRECT_MOS , NETWORK_ERROR_MOS , MESSAGE_CANCELLED_PRE_TRANSIT_MOS , MESSAGE_CANCELLED_IN_TRANSIT_MOS , SUBSCRIPTION_INVALID_MOS , PROTOCOL_ERROR_MOS , MESSAGE_DROPPED_LOCAL_CRC_ERROR_MOS , CRC_ERROR_IN_TRANSFER_MOS , USER_SUPPLIED_CRC_ERROR_MOS }

enum	jsprFinalMtStatus_t { COMPLETE , MESSAGE_TIMED_OUT , MESSAGE_CANCELLED , CRC_ERROR_IN_TRANSFER }

enum	jsprTopicPriority_t { SAFETY_1 , SAFETY_2 , SAFETY_3 , HIGH_PRIORITY , MEDIUM_PRIORITY , LOW_PRIORITY }

Functions
int	sendJspr (const char *buffer, size_t length)

bool	receiveJspr (jsprResponse_t response, const char expectedTarget)

bool	waitForJsprMessage (jsprResponse_t response, const char expectedTarget, const uint32_t expectedCode, const uint32_t timeoutSeconds)

void	clearResponse (jsprResponse_t *response)

bool	parseJsprBootInfo (const char jsprString, jsprBootInfo_t bootInfo)

bool	parseJsprGetApiVersion (char jsprString, jsprApiVersion_t apiVersion)

bool	parseJsprFirmwareInfo (const char jsprString, jsprFirmwareInfo_t firmwareInfo)

bool	parseJsprGetSimInterface (char jsprString, jsprSimInterface_t simInterface)

bool	parseJsprGetOperationalState (char jsprString, jsprOperationalState_t operationalState)

bool	parseJsprPutMessageOriginate (char jsprString, jsprMessageOriginate_t messageOriginate)

bool	parseJsprUnsMessageOriginateSegment (char jsprString, jsprMessageOriginateSegment_t messageOriginateSegment)

bool	parseJsprUnsMessageTerminate (char jsprString, jsprMessageTerminate_t messageTerminate)

bool	parseJsprUnsMessageTerminateSegment (char jsprString, jsprMessageTerminateSegment_t messageTerminateSegment)

bool	parseJsprGetSignal (char jsprString, jsprConstellationState_t signal)

bool	parseJsprUnsMessageOriginateStatus (char jsprString, jsprMessageOriginateStatus_t messageOriginateStatus)

bool	parseJsprUnsMessageTerminateStatus (char jsprString, jsprMessageTerminateStatus_t messageTerminateStatus)

bool	parseJsprGetMessageProvisioning (char jsprString, jsprMessageProvisioning_t messageProvisioning)

bool	parseJsprGetHwInfo (char jsprString, jsprHwInfo_t hwInfo)

bool	parseJsprGetSimStatus (char jsprString, jsprSimStatus_t simStatus)

Macro Definition Documentation

◆ JSPR_BOOT_INFO_HASH_LEN

#define JSPR_BOOT_INFO_HASH_LEN 65U

◆ JSPR_BOOT_INFO_IMAGE_TYPE_LEN

#define JSPR_BOOT_INFO_IMAGE_TYPE_LEN 11U

◆ JSPR_HW_VERSION_MAX_LENGTH

#define JSPR_HW_VERSION_MAX_LENGTH 7U

◆ JSPR_ICCID_MAX_LENGTH

#define JSPR_ICCID_MAX_LENGTH 20U

◆ JSPR_IMEI_MAX_LENGTH

#define JSPR_IMEI_MAX_LENGTH 16U

◆ JSPR_MAX_JSON_LENGTH

#define JSPR_MAX_JSON_LENGTH 3500U

◆ JSPR_MAX_NUM_API_VERSIONS

#define JSPR_MAX_NUM_API_VERSIONS 2U

◆ JSPR_MAX_SEGMENT_LENGTH

#define JSPR_MAX_SEGMENT_LENGTH 1447U

◆ JSPR_MAX_TARGET_LENGTH [1/2]

#define JSPR_MAX_TARGET_LENGTH 30U

◆ JSPR_MAX_TARGET_LENGTH [2/2]

#define JSPR_MAX_TARGET_LENGTH 30U

◆ JSPR_MAX_TOPICS

#define JSPR_MAX_TOPICS 20U

◆ JSPR_MIN_RESPONSE

#define JSPR_MIN_RESPONSE 9U

◆ JSPR_RESULT_CODE_LENGTH

#define JSPR_RESULT_CODE_LENGTH 3U

◆ JSPR_SERIAL_NUMBER_MAX_LENGTH

#define JSPR_SERIAL_NUMBER_MAX_LENGTH 7U

◆ JSPR_TOPIC_NAME_MAX_LENGTH

#define JSPR_TOPIC_NAME_MAX_LENGTH 57U

◆ JSPR_VERSION_INFO_BUILD_INFO_LEN

#define JSPR_VERSION_INFO_BUILD_INFO_LEN 50U

◆ RX_BUFFER_SIZE

#define RX_BUFFER_SIZE 8192U

◆ TX_BUFFER_SIZE

#define TX_BUFFER_SIZE 8192U

Enumeration Type Documentation

◆ availableOperationalStates_t

enum availableOperationalStates_t

Enumerator
INACTIVE
ACTIVE
CAL_TEST
HW_SELF_TEST
RF_SCAN
LOOPBACK
FAULT

◆ availableSimInterfaces_t

enum availableSimInterfaces_t

Enumerator
SIM_NONE
SIM_LOCAL
SIM_REMOTE
SIM_INTERNAL

◆ jsprBootSource_t

enum jsprBootSource_t

Enumerator
JSPR_BOOT_SOURCE_UNKNOWN
JSPR_BOOT_SOURCE_PRIMARY
JSPR_BOOT_SOURCE_FALLBACK

◆ jsprFinalMoStatus_t

enum jsprFinalMoStatus_t

Enumerator
MO_ACK_RECEIVED_MOS
MESSAGE_DISCARDED_ON_OVERFLOW_MOS
MESSAGE_EXPIRED_MOS
MESSAGE_TRANSFER_TIMEOUT_MOS
SEGMENT_NOT_SUPPLIED_MOS
SEGMENT_INCORRECT_MOS
NETWORK_ERROR_MOS
MESSAGE_CANCELLED_PRE_TRANSIT_MOS
MESSAGE_CANCELLED_IN_TRANSIT_MOS
SUBSCRIPTION_INVALID_MOS
PROTOCOL_ERROR_MOS
MESSAGE_DROPPED_LOCAL_CRC_ERROR_MOS
CRC_ERROR_IN_TRANSFER_MOS
USER_SUPPLIED_CRC_ERROR_MOS

◆ jsprFinalMtStatus_t

enum jsprFinalMtStatus_t

Enumerator
COMPLETE
MESSAGE_TIMED_OUT
MESSAGE_CANCELLED
CRC_ERROR_IN_TRANSFER

◆ jsprTopicPriority_t

enum jsprTopicPriority_t

Enumerator
SAFETY_1
SAFETY_2
SAFETY_3
HIGH_PRIORITY
MEDIUM_PRIORITY
LOW_PRIORITY

◆ messageOriginateResponses_t

enum messageOriginateResponses_t

Enumerator
MESSAGE_ACCEPTED
SUBSCRIPTION_INVALID
MESSAGE_DISCARDED_ON_OVERFLOW

◆ operationalStateReason_t

enum operationalStateReason_t

Enumerator
NORMAL
HARDWARE_SELF_TEST_FAILURE
TEMPERATURE_FAULT
RF_POWER_PROTECTION_FAULT
VAM_APP_FAILED_ACK_INTERFACE_TRANSITION_FLOWING
INVALID_HARDWARE
LOW_SUPPLY_VOLTAGE
MFRTEST_USED_INCORRECTLY

◆ responseCodes

enum responseCodes

Enumerator
JSPR_RC_NO_ERROR
JSPR_RC_UNSOLICITED_MESSAGE
JSPR_RC_API_VERSION_NOT_SELECTED
JSPR_RC_UNSUPPORTED_REQUEST_TYPE
JSPR_RC_CONFIGURATION_ALREADY_SET
JSPR_RC_COMMAND_TOO_LONG
JSPR_RC_UNKNOWN_TARGET
JSPR_RC_COMMAND_MALFORMED
JSPR_RC_OPERATION_NOT_ALLOWED
JSPR_RC_BAD_JSON
JSPR_RC_REQUEST_FAILED
JSPR_RC_UNAUTHORIZED
JSPR_RC_SIM_NOT_CONFIGURED
JSPR_RC_WAKE_XCVR_IN_INVALID
JSPR_RC_INVALID_CHANNEL
JSPR_RC_INVALID_ACTION
JSPR_RC_HARDWARE_NOT_CONFIGURED
JSPR_RC_INVALID_RADIO_PATH
JSPR_RC_CRASH_DUMP_NOT_AVAILABLE
JSPR_RC_FEATURE_NOT_SUPPORTED_BY_HARDWARE
JSPR_RC_NOT_PROVISIONED
JSPR_RC_INVALID_TRANSMIT_POWER
JSPR_RC_INVALID_BURST_TYPE
JSPR_RC_SERIAL_PORT_ERROR

Function Documentation

◆ clearResponse()

void clearResponse ( jsprResponse_t * response )

◆ parseJsprBootInfo()

bool parseJsprBootInfo	(	const char *	jsprString,
		jsprBootInfo_t *	bootInfo
	)

◆ parseJsprFirmwareInfo()

bool parseJsprFirmwareInfo	(	const char *	jsprString,
		jsprFirmwareInfo_t *	firmwareInfo
	)

◆ parseJsprGetApiVersion()

bool parseJsprGetApiVersion	(	char *	jsprString,
		jsprApiVersion_t *	apiVersion
	)

◆ parseJsprGetHwInfo()

bool parseJsprGetHwInfo	(	char *	jsprString,
		jsprHwInfo_t *	hwInfo
	)

◆ parseJsprGetMessageProvisioning()

bool parseJsprGetMessageProvisioning	(	char *	jsprString,
		jsprMessageProvisioning_t *	messageProvisioning
	)

◆ parseJsprGetOperationalState()

bool parseJsprGetOperationalState	(	char *	jsprString,
		jsprOperationalState_t *	operationalState
	)

◆ parseJsprGetSignal()

bool parseJsprGetSignal	(	char *	jsprString,
		jsprConstellationState_t *	signal
	)

◆ parseJsprGetSimInterface()

bool parseJsprGetSimInterface	(	char *	jsprString,
		jsprSimInterface_t *	simInterface
	)

◆ parseJsprGetSimStatus()

bool parseJsprGetSimStatus	(	char *	jsprString,
		jsprSimStatus_t *	simStatus
	)

◆ parseJsprPutMessageOriginate()

bool parseJsprPutMessageOriginate	(	char *	jsprString,
		jsprMessageOriginate_t *	messageOriginate
	)

◆ parseJsprUnsMessageOriginateSegment()

bool parseJsprUnsMessageOriginateSegment	(	char *	jsprString,
		jsprMessageOriginateSegment_t *	messageOriginateSegment
	)

◆ parseJsprUnsMessageOriginateStatus()

bool parseJsprUnsMessageOriginateStatus	(	char *	jsprString,
		jsprMessageOriginateStatus_t *	messageOriginateStatus
	)

◆ parseJsprUnsMessageTerminate()

bool parseJsprUnsMessageTerminate	(	char *	jsprString,
		jsprMessageTerminate_t *	messageTerminate
	)

◆ parseJsprUnsMessageTerminateSegment()

bool parseJsprUnsMessageTerminateSegment	(	char *	jsprString,
		jsprMessageTerminateSegment_t *	messageTerminateSegment
	)

◆ parseJsprUnsMessageTerminateStatus()

bool parseJsprUnsMessageTerminateStatus	(	char *	jsprString,
		jsprMessageTerminateStatus_t *	messageTerminateStatus
	)

◆ receiveJspr()

bool receiveJspr	(	jsprResponse_t *	response,
		const char *	expectedTarget
	)

◆ sendJspr()

int sendJspr	(	const char *	buffer,
		size_t	length
	)

◆ waitForJsprMessage()

bool waitForJsprMessage	(	jsprResponse_t *	response,
		const char *	expectedTarget,
		const uint32_t	expectedCode,
		const uint32_t	timeoutSeconds
	)
